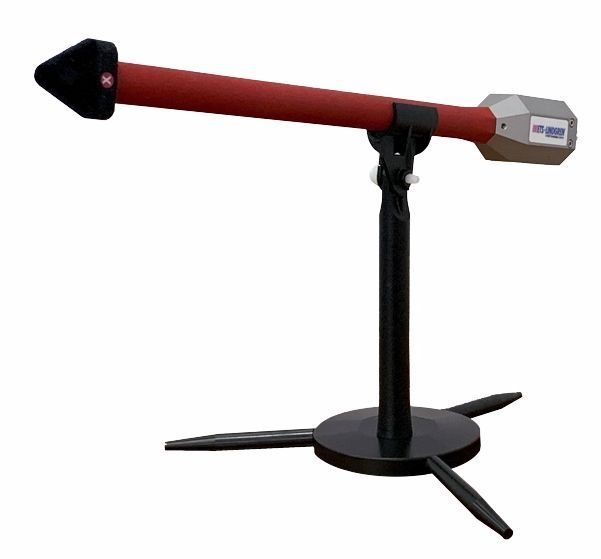

EMSense 40 Electric Field Probe
ETS-Lindgren's laser-powered EMSense™ 40 Electric Field Probe embodies the latest innovations in isotropic sensor design, low noise and miniaturized electronics. Designed to be single range reading, the EMSense 40 can read data continuously over the entire dynamic range. Data values for each axis (X, Y, and Z) can be read individually or summed. Fiber optic signal and power lines link the RF field probe to either the EMCenter 2/7 Slot, or as a direct connect to a PC USB port with the EMCenter 1-Slot.
The EMCenter 2 and 7 Slot Modular RF Platform along with the EMSense 40 interface card can be used as a Field Monitor in addition to its capability as a system level platform.
The EMCenter 1-Slot with the EMSense 40 interface card provide laser power and communications for the EMSense 40 Field Probe. A USB connection to the PC allows for quick and easy data collection, using an EMC software.
Key Features
Laser powered for extended testing
Frequency corrected field values direct from probe
No need to apply correction factor
Single probe frequency range - 10 MHz to 40 GHz
Broad dynamic range – 2 to 1000 V/m
Sleek stalk design
Three axis dipole design
A2LA Accredited Calibration
Suitable for MIL Standard Specs:
o MIL-STD 461F Radiated Susceptibility (RS)
Suitable for Automotive Specs:
o SAE J1113/27
o GMW 3091/3097/3103
o FORD FMC 1278
Suitable for Commercial Specs: EN/IEC 61000-4-3 Radiated Immunity
